Stub End Fittings

Stub Ends are used to connect pipes in piping arrangements and are generally manufactured by welding two sub-components. The stub-end shape is formed by rolling dies instead of an outer mold. During this process, the lap roller motion is dependent on the required degree of forming.

Rio Engineering is the leading manufacturer and Exporters of Stub End. There are two types of Stub Ends, Long Stub End, and Short Stub End.

Stub End Fittings Specification

Specifications	ASTM A403/ ASME SA403
Fittings size	1/2" - 10", 1/2" - 48"
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Pipe FittingsType	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Manufacturing process	Push, Press, Forge, Cast, etc.
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of	Cap, Cross, Elbow, Pipe Bends, Reducers, Nipple, Stub End, Bushing, Couplings (Half , Full), Elbow 45/90 Degrees, Lateral Cap , Reducer and Reducer Inserts, Forged Boss.
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Pipe Fittings

Cap Pipe Fittings

Cross Pipe Fittings

Elbow Pipe Fittings

Pipe Bends Pipe Fittings

Reducers Pipe Fittings

Nipple Pipe Fittings

Stub Pipe Fittings

Bushing Pipe Fittings

Couplings (Half , Full) Pipe Fittings

Elbow 45/90 Degrees Pipe Fittings

Lateral Pipe Fittings

Reducer and Reducer Inserts Pipe Fittings

Type of stub ends

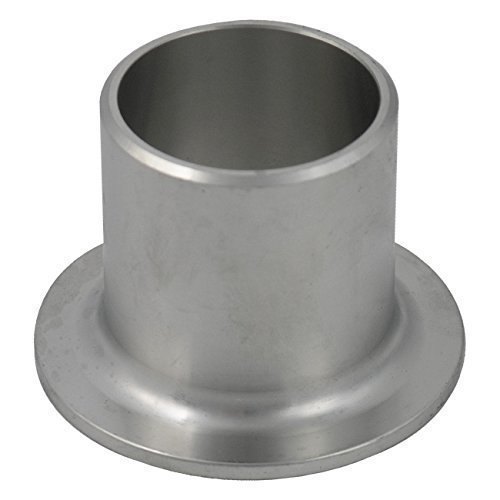

Long Stub End
Short Stub End

Long Stub End

Size: 1/2″ NB to 48″ NB

Schedule: SCH 20, SCH30, SCH40, STD, STD 80, XS, SCH60, SCH80, SCH120, SCH 160, SCH 140, XXS

Type: Seamless / ERW / welded / Fabricated

Materials :
• Stainless Steel :ASTMA403 W2P GR.304, 304L, 309, 310, 316, 316L, 317L, 321, 347, 904L
• Carbon Steel :ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH60, WPHY 65, WPHY 70.
• Low Temperature Carbon Steel : ASTM A 234 WPL3 / A420WPL6
• Alloy Steel : ASTM/ ASME A/SA 234 GR.WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
• Duplex steel – ASTM A 815, UNS S31803, S 32205.

Short Stub End

Size: 1/2″ NB to 48″ NB

Schedule: SCH 20, SCH30, SCH40, STD, STD 80, XS, SCH60, SCH80, SCH120, SCH 160, SCH 140, XXS

Type: Seamless / ERW/welded / Fabricated

VALUE ADDED SERVICE:
• Hot Dip Galvanizing
• Epoxy Coating
• Electro Polish

Applications Industries

Waste Water Treatment

Oil and Gas

Power Generation

Chemical Processing

Petroleum Refining

Ship Building
